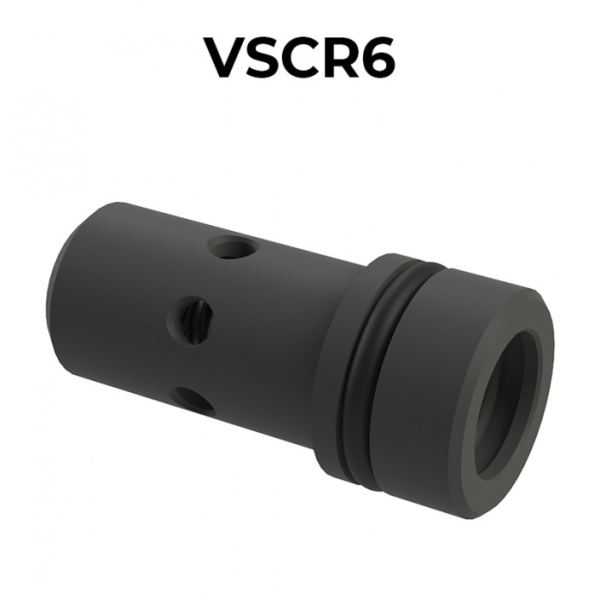

VSCR6 Flow control pressure compensated valve, unidirectional.

The compansated flow regulators VSCR6 are fitted into a cylidric cavity with diameter 12.7 mm (SAE08/2), in the circuits of mini power packs, in order to manage a constant flow to their return line. These valves allows also the feeding flow to the cylinders without compensation. Valves VSCR6 are insert execution valves and have fixed setting regarding the outlet flow. A calibrated orifice on the internal spool of the valve manages the regulated flow. Setting range is from 1 lpm (0,26 USgpm) to 12 lpm (3,2 USgpm), with tolerance +/- 10%. Maximum working pressure not over 250 bar (3625 PSI). Flow control valves VSCR, thanks to their high performace combined with its easy installation, guarantee a high quality/price ratio. Thanks to the fixed regulation, once determined the ideal flow corresponding to the lowering speed, the valves VSCR6 don’t need any setting operation more, with a consequent optimization in therms of installation time.
